Description

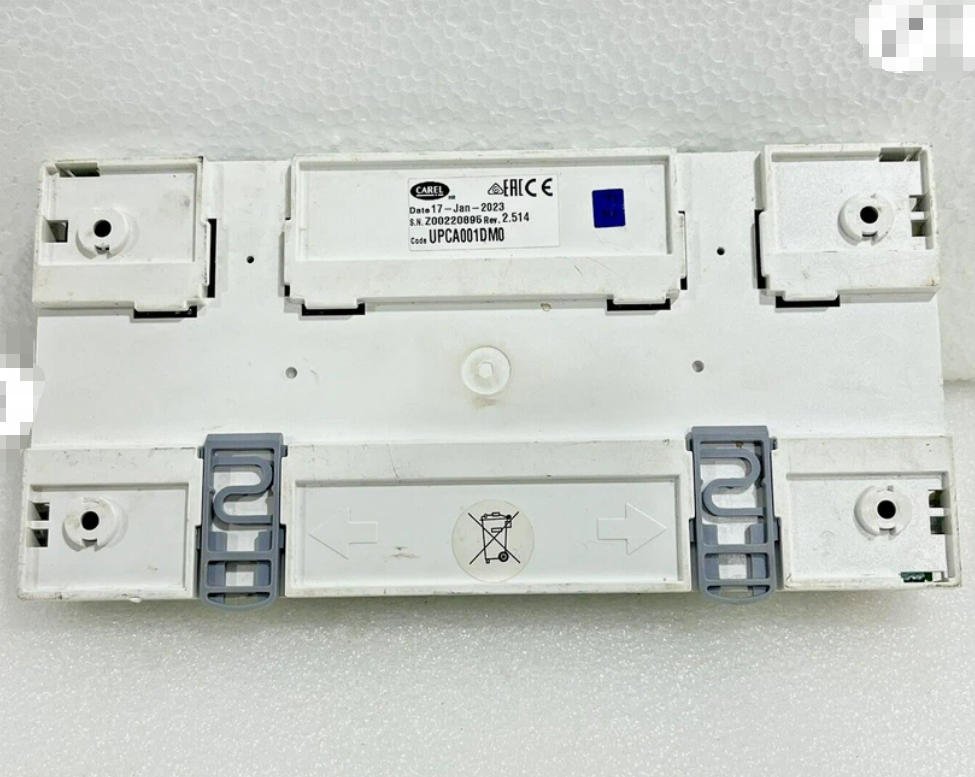

Air Conditional Chiller Spare Parts Control Main Board UPCA001DM0
Core Specifications and Details
- Product type : Main Board Controller / Micro UPC Medio.
- Brand : CAREL (Carel, an Italian brand).
- Application areas : Widely used in logic control of refrigeration units (Rack Units), air handling units (AHUs), and refrigeration systems.

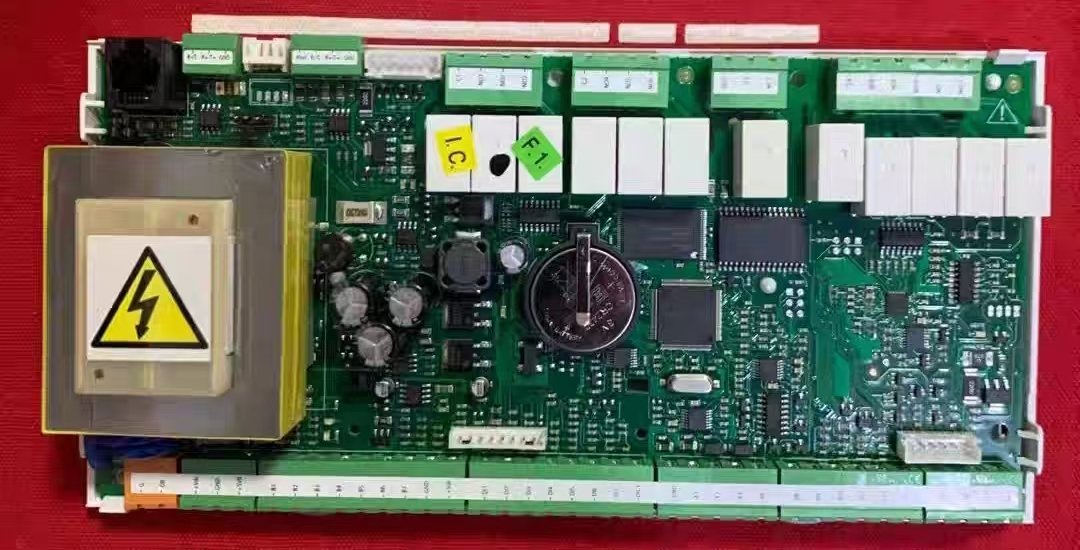

- Main components and interfaces :
- Power connection : Supports safe voltage power supply (usually marked with +VDC, -VDC, G terminals).
- Inputs/Outputs : Features 8 analog inputs (B1-B8), multiple digital inputs/outputs (D1-D7), and relay outputs (N01-N07).
- Clock and Backup : An onboard CR2032 battery is used for backup of the real-time clock (RTC) and memory data.
- Protection device : Equipped with 5×20 fuses.
