Description

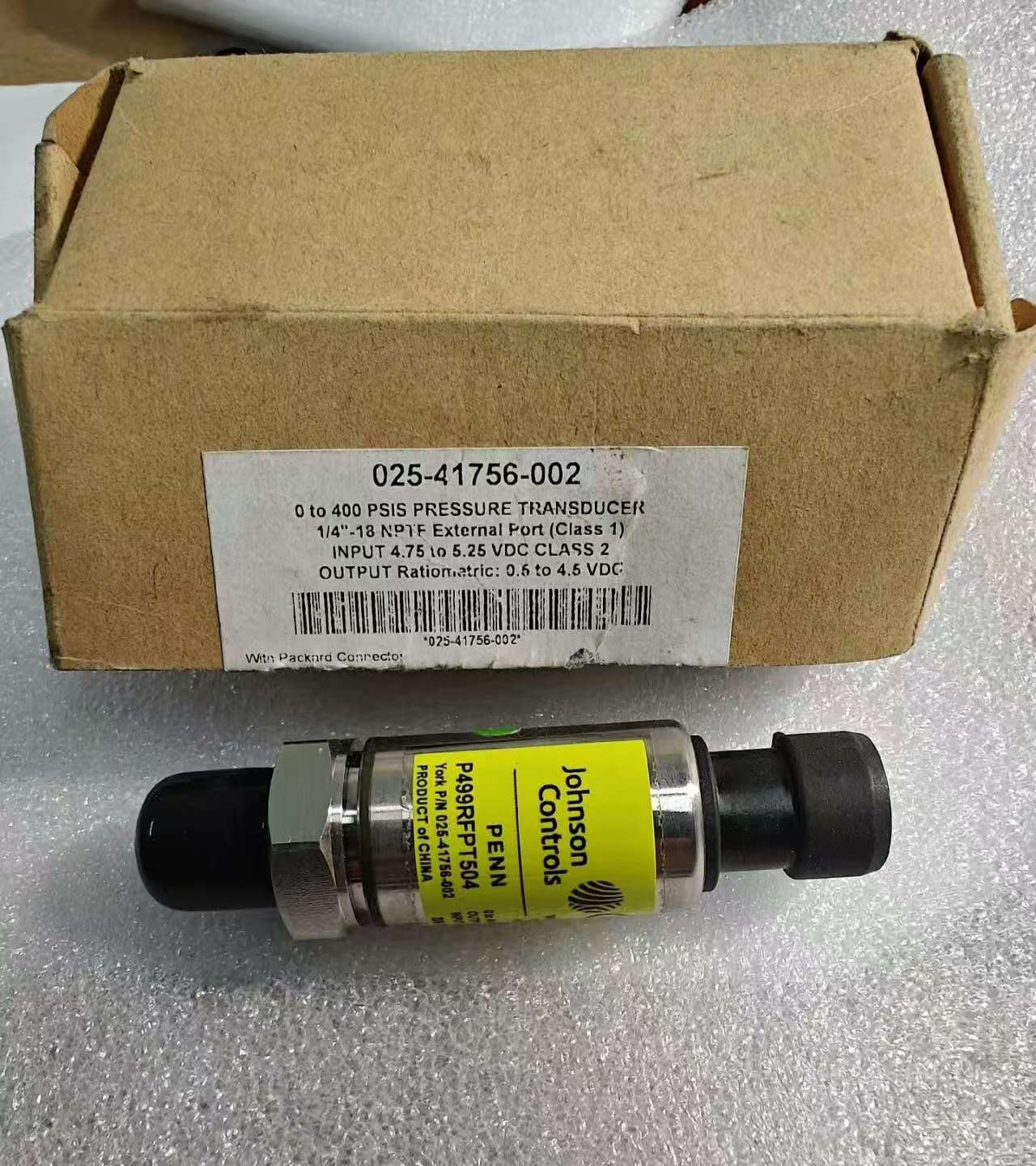

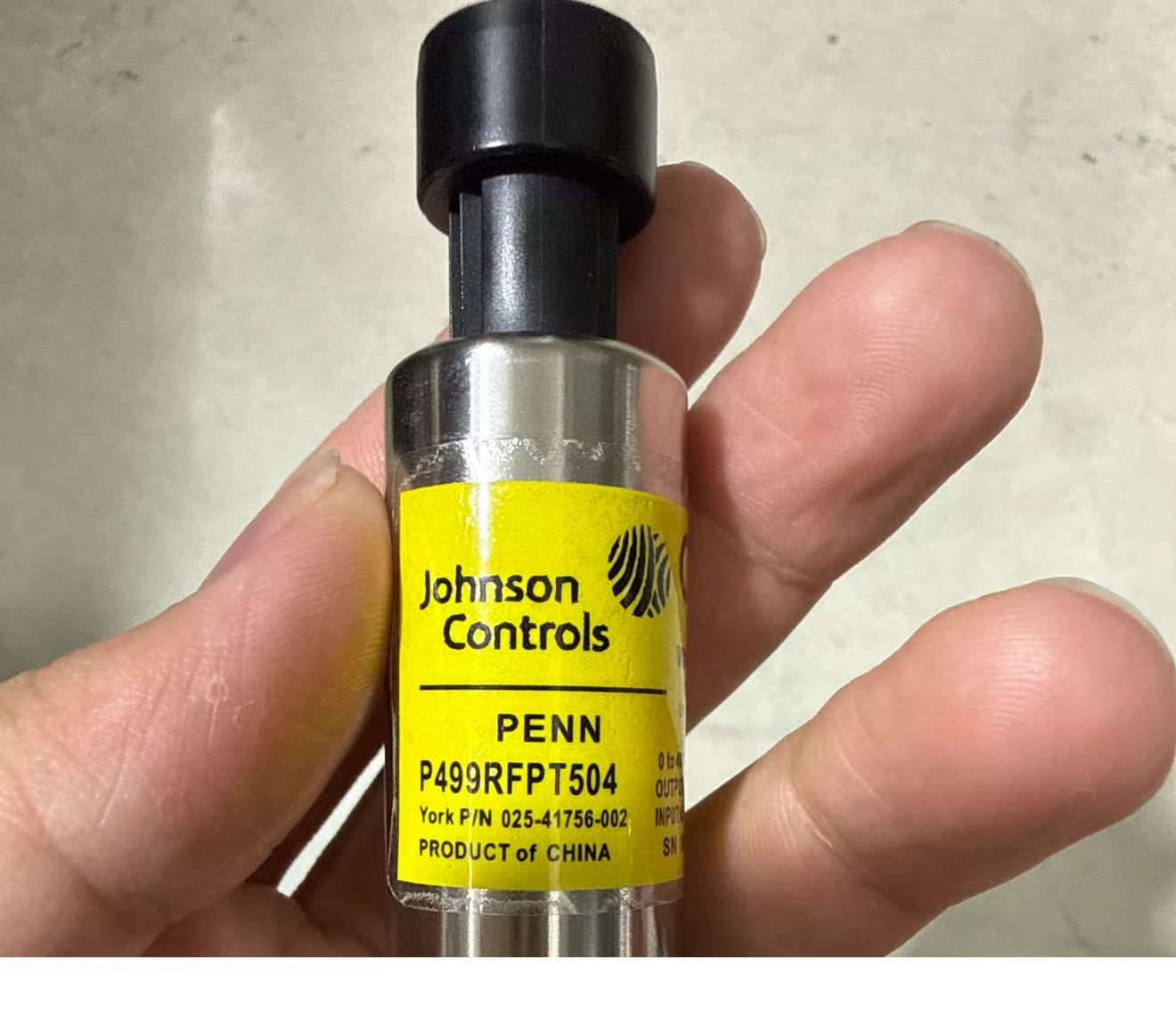

Air Conditioner Chiller Spare Parts 025-41756-002
Core Specifications:
- Applications : Primarily used for pressure monitoring in chiller units, industrial machinery, and HVAC&R (heating, ventilation, air conditioning, and refrigeration) systems.
- Pressure range : 0 to 400 PSIG (or PSIS).
- Interface : 1/4 inch – 18 NPFT external port.
- Electrical parameters :
- Input : 4.75 to 5.25 VDC.
- Output : Ratio meter 0.5 to 4.5 VDC.
- Compatibility : Suitable for common refrigerants such as R410A and R134a, with an operating temperature range of -40°C to +85°C.
