Description

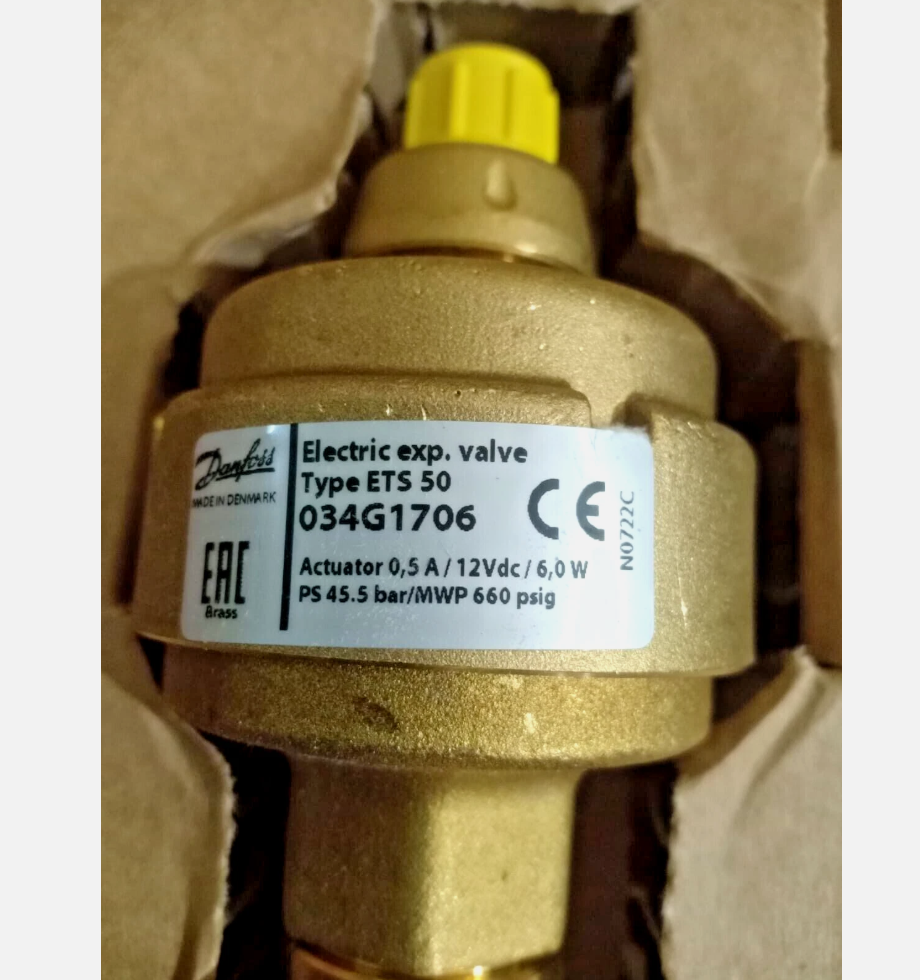

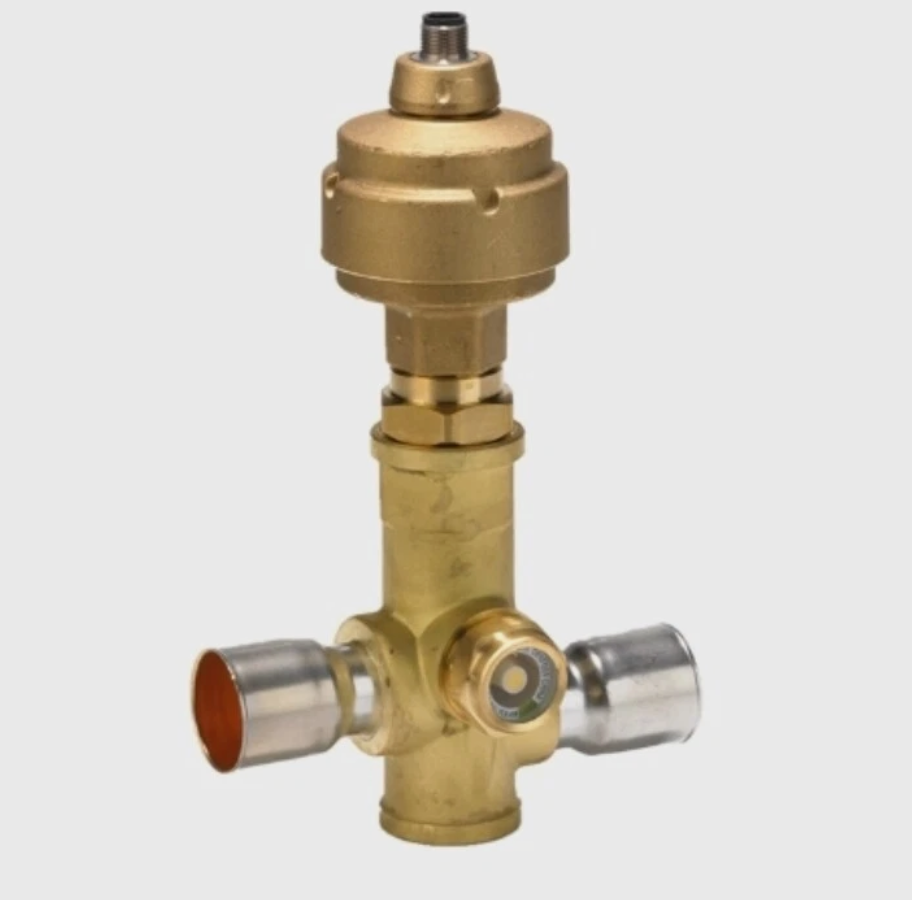

Air Conditoner Refrigeration Compressor Spare Parts Electric Expansion Valve ETS 50 034G1706
034G1706 isDanfoss manufactures the ETS 50 electronic expansion valve.It is mainly used in air conditioning and refrigeration systems, where a stepper motor precisely controls the flow of refrigerant entering the evaporator.
Core Specifications
Model/Type : ETS 50 Electronic Expansion Valve.
Connection dimensions : Both inlet and outlet are 1 1/8 inch (approximately 28mm) welded (Solder ODF) connections.
Operating pressure : Maximum operating pressure is 45.5 bar (660 psig).
Temperature range : Both ambient temperature and fluid temperature range are -40°C to 60°C/65°C .
Motor specifications : Bipolar permanent magnet stepper motor, with a total stroke of 2625 steps .
Refrigerant compatibility : Widely compatible with a variety of common refrigerants such as R410A, R407C, R404A, R134a, and R22.
Protection rating : IP67 .
